5 years warranty 50w 80w 100w 150w 240w led street light, IP66 waterproof 3000k 6000k city led road lighting
Model Number : EK-LD2301
Navê hilberê: laşê Ronahiya kolanê
Recommend the Watts: : 20w 60w 80w 100w 150w 200w 240w
Indeksa Waterproof: IP66 IP67
Endeksa Erdhejê : IK08 IK09
Germahiya xebatê (℃): -20-60
Rengê Rûyê: Gewrê tarî, Gewrê Ronahî, Reş, Xweserî hwd
Contain Accessories : Complete finished street lights
Taybetmendiyên Hilberê
- Laşê Aluminium ji ADC12 Aluminium Die-casting hatî çêkirin, rûyê ku ji hêla Spray-boyaxê ve hatî derman kirin da ku pêşî li korozyon û domdariya rengîn bigire.
- Sêwirana pêlava germê ya qada mezin ji bo teoriya bilez di berjewendiya veguheztina di navbera hewaya sar û germ de, ji bo domandina belavkirina germa baş a lampeyan û zêdekirina ronahiyê tevahiya heyama jiyanê.
- Qutiya dabînkerê hêzê ku lampê temam û yekgirtî bimîne.
- Sêwirana hewayê ji bo pêşîlêgirtina tozê û pêşîlêgirtina ava rawestanê ji bo bidestxistina dema dirêj-dirêj a sivik.

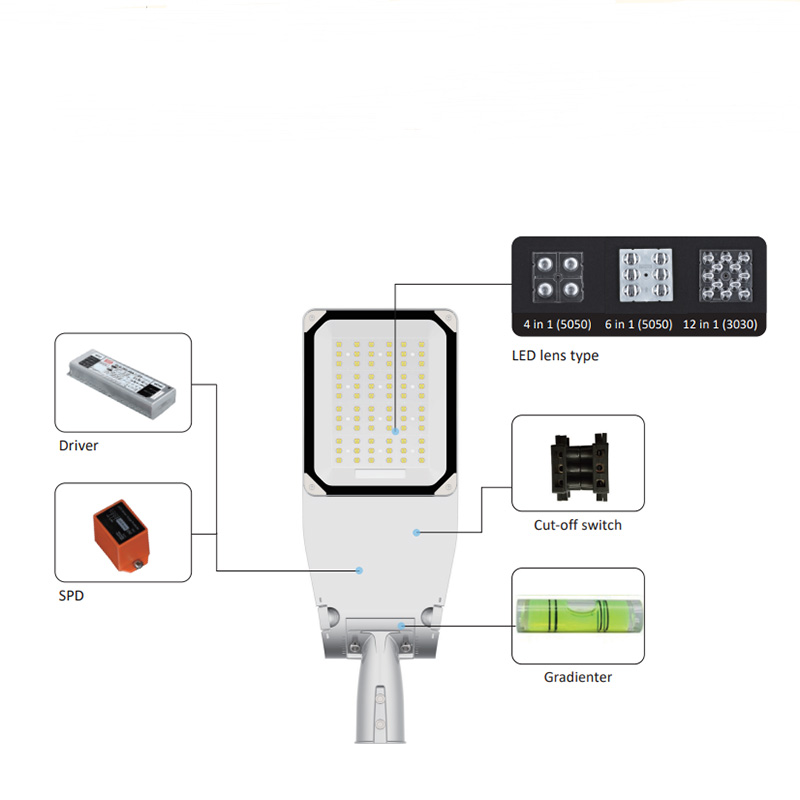

Product Details

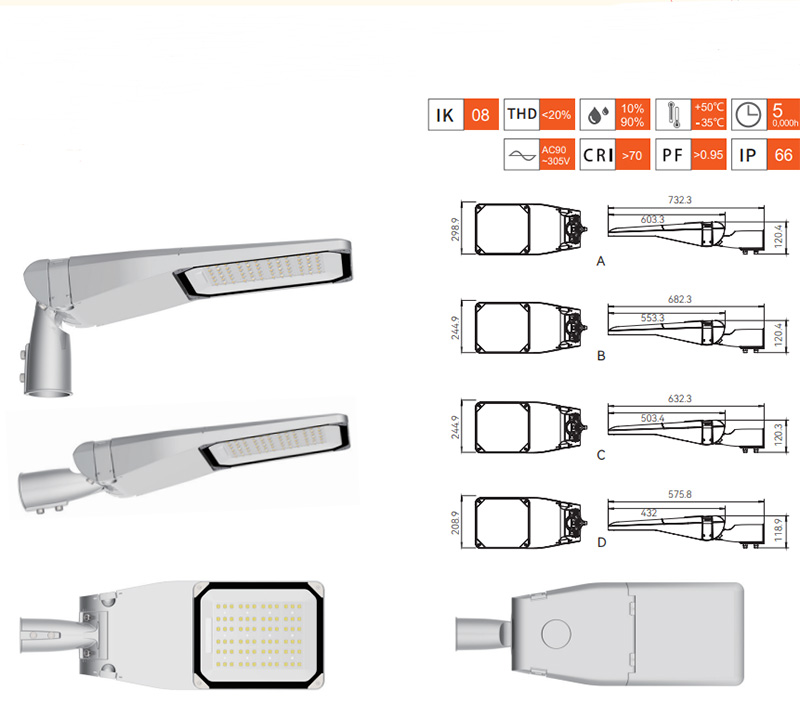

Product Size Chart
Specification û Dimension
| Model | EK-LD2301A | EK-LD2301B | EK-LD2301C | EK-LD2301D |
| Wattage | 150-240W | 100W-150W | 60W-100W | 20W-60W |
| Average Lumen | around 120 LM/W | around 120 LM/W | around 120 LM/W | around 120 LM/W |
| Chip Brand | LUMILEDS/CREE/SAN'AN | LUMILEDS/CREE/SAN'AN | LUMILEDS/CREE/SAN'AN | LUMILEDS/CREE/SAN'AN |
| Driver Brand | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics |
| Power Factor | >0.95 | >0.95 | >0.95 | >0.95 |
| Voltage Range | 90V-305V | 90V-305V | 90V-305V | 90V-305V |
| Surge Protection(SPD) | 10KV/20KV | 10KV/20KV | 10KV/20KV | 10KV/20KV |
| Insulation Class | Class I / II | Class I / II | Class I / II | Class I / II |
| CCT. | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K |
| CRI. | >70 | >70 | >70 | >70 |
| Working Temperature | (-35℃ to 50℃) | (-35℃ to 50℃) | (-35℃ to 50℃) | (-35℃ to 50℃) |
| Class IP | IP66 | IP66 | IP66 | IP66 |
| IK Class | ≥IK08 | ≥IK08 | ≥IK08 | ≥IK08 |
| Lifetime (Hours) | >50000 hours | >50000 hours | >50000 hours | >50000 hours |
| Mal | Diecasting aluminium | Diecasting aluminium | Diecasting aluminium | Diecasting aluminium |
| Photocell base | With | With | With | With |
| Installation Spigot | 60/50mm | 60/50mm | 60/50mm | 60/50mm |
New Arrival 180W Street Led Manufacturer Outdoor Lighting Waterproof Aluminum LED Street Light
ShenZhen EKI Lighting Industrial Co., Ltd. Hilberînerê Aluminum Die-Casting LED Light Housing Bi cûrbecûr sêwiran û teknolojiyên me yên pêşkeftî re ye.
With Our High-Technology Machine such as, 250T 800T 1000T 1250T Die Casting Machine, CNC Machine, Well Managed production line and surface treatment facility. We becoming specialized in LED Streetlight Housing, LED Floodlight Housing, LED Highbay Heatsink, LED Empty Casting aluminum light housing.
